Guide to Coda with Sample Scripts


AndalayBay

Recommended Posts

Introduction

Coda is the scripting language for the Construction Set Extender (CSE). It is not Legacy, or the scripting language used for Oblivion. It is a scripting language that you can use to automate a variety of tasks in the editor, such as renaming objects, moving objects or batch editing object attributes. In this guide, or tutorial, I will show you how you can use Coda to accomplish a variety of tasks.

Documentation

The Coda Manual is distributed with the Construction Set Extender. You will find it in Data\Docs\Construction Set Extender. The manual explains the general syntax of Coda scripts and how to execute them. It also describes the general language structure, including a description of variables and data types, operators and flow control. In addition to the manual, there is the Coda Command document, which is an HTML file listing all the functions and commands. Since the command set is still being developed, the command document is not included in the distribution. Instead you can generate the most recent version by typing DumpCodaDocs from the console command prompt (see below).

Creating and Running Scripts

The structure of Coda scripts is described in the manual, so I won't repeat it here. I will be listing several examples that you can use to get started. You create your scripts using a text editor. If you use an editor like TextPad or NotePad++, you can use an Oblivion script syntax highlighter. Coda shares its basic syntax with Legacy. Save your scripts with .coda for the extension. Scripts must be in Data\BGSEE\Coda to be accessed and executed from the command line.

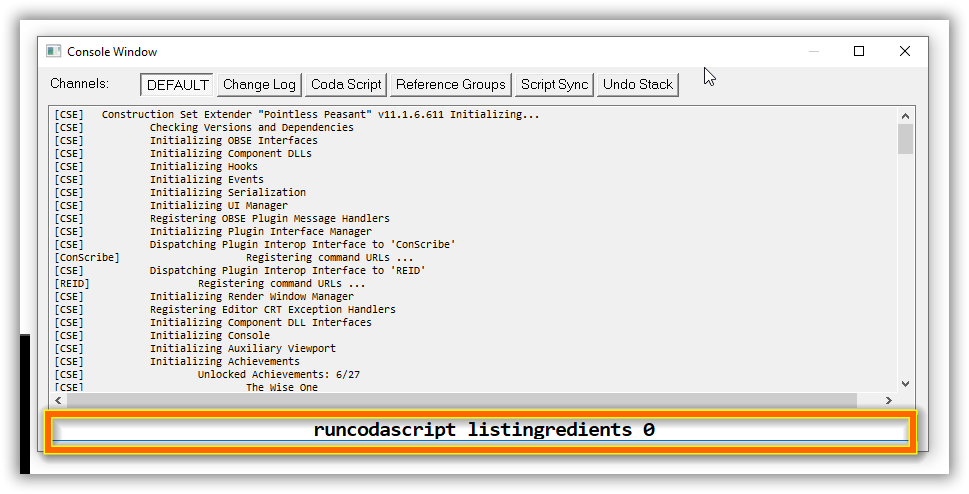

Once you've created a script, you run it from the command line in the CSE Console Window. Here's an example:

Console Command Area.png

Coda scripts are invoked with the RunCodaScript command. The command takes two parameters: the script name minus the extension and a boolean integer indicating whether it's a background script or not. You would use 0 for a regular script and 1 for a background script. Most scripts would be run as a foreground process. I will provide one example of a script that must be run as a background process.

Sample Scripts

Here are some sample scripts. They are all real scripts, so you can adapt them to your purposes.

List Ingredients

Here's the script for the example above. It just lists the ingredients added by Argonia.

CODA(ListIngredients)

var ingred
var EditorID
var firstChars
var formIDString
var fullName
var baseRef

begin
	forEach ingred <- GetDataHandlerFormList(25)
		EditorID = GetEditorID(ingred)
		formIDString = FormatNumber("%08X", ingred, 1)
		firstChars = StringSubStr(EditorID, 0, 2)
		if (StringCompare(firstChars, "BM", 1) == 0)
			baseRef = getFormByEditorID(EditorID)
			fullName = GetBFCFullName(baseRef)
			printC(EditorID//" | "//fullName)
		endif
	loop
end

Strip off Leading Digits from Editor IDs

This script will strip off the leading digits from editor IDs, which are known to cause problems with Oblivion scripts. It processes all AI packages. You can change the batch of editor IDs by changing the form type ID parameter for the GetDataHandlerFormList function. GetDataHandlerFormList can accept hexadecimal or decimal values. In this example we are using the hexidecimal value for AI packages. The decimal equivalent is 61. The full list of form type IDs is in the Coda Command Documentation or the OBSE documentation.

CODA(ChangeEditorID)

 var Buffer
 var EditorID
 var firstChar

 begin
 	; retrieve AI package forms
 	forEach Buffer <- GetDataHandlerFormList(0x3D)
 		EditorID = GetEditorID(Buffer)
 		firstChar = StringSubStr(EditorID, 0, 1)
 		; we only want to change the editor IDs that start with a number
 		if StringIsNumber(firstChar)
 			printC("editorID (old) ="//$EditorID)
 			; skip the first character. If there is more than one digit,
 			; change the starting position so that it skips all the digits.
 			EditorID = StringSubStr(EditorID, 1, StringLength(EditorID))
 			printC("editorID (new) ="//$EditorID)
 			setEditorID(Buffer, $EditorID)
 		endif
 	loop
 	; It's pretty quick, but nice to know exactly when it's done.
 	printc("All done.")
 end

Save this script as ChangeEditorID.coda and execute it by typing

RunCodaScript ChangeEditorID 0

at the command line in the Console Window. Note that the command and parameters are not case sensitive.

Add Mod Prefix to Editor IDs for Cells

This script will add the specified mod prefix to the cell editor IDs. This is handy if you would like to have a naming convention for the objects in your mod and some team members neglected to prefix their editor IDs accordingly. This example renames the editor IDs for cells, but once again, you can change the scope by changing the form type ID. This time we're using the decimal value for cell, which is 48. Semi-colons (;) are used for comments in Coda, just as they are in Oblivion script. The printC commands have been commented out in this sample.





CODA(AddBMStartCell)

 var Buffer
 var EditorID
 var firstChars
 var length
 var formIDString
 var formStart

 begin
 	forEach Buffer <- GetDataHandlerFormList(48)
 		EditorID = GetEditorID(Buffer)
 		formIDString = FormatNumber("%08X", (int)Buffer, 1)
 		;printc("form string = "//formIDString)
 		formstart = StringSubStr(formIDString, 0, 2)
 		if StringCompare(formStart, "01", 0) == 0
 			firstChars = StringSubStr(EditorID, 0, 2)
 			length = StringLength(EditorID)
 			if length == 0
 				continue()
 			endif
 			if (StringCompare(firstChars, "BM", 0) != 0)
 				;printC("editorID (old) ="//EditorID)
 				EditorID = "BM" // EditorID
 				;printC("editorID (new) ="//EditorID)
 				setEditorID(Buffer, EditorID)
 			endif
 		endif
 	loop
 	printc("All done.")
 end

Print Random Numbers

Here's a little test script to show how the random number function works. I use this function later. ;) In this case, I'm generating random numbers between 0 and 359, which correspond to angles. The generated numbers are floats with six decimal places.

CODA(Random)

 var randomNum
 var i

 begin
 	while i < 10
 		randomNum = RandomNumber(0, 359)
 		printC("Random number: "//$randomNum)
 		i += 1
 	loop
 end

There are more samples in the Coda manual.

All the scripts so far are executed as regular foreground scripts. Before I detail the monster background script, I'll direct you to the  Disable Trees example  on the CS Wiki. Disable Trees demonstrates how to scan exterior cells for specific objects and disable them. It also mentions a key CSE function: you can get a list of all cell form IDs by using the Export tool from the main menu.

File -> Export -> Interior and Exterior Cell Data
